产品介绍

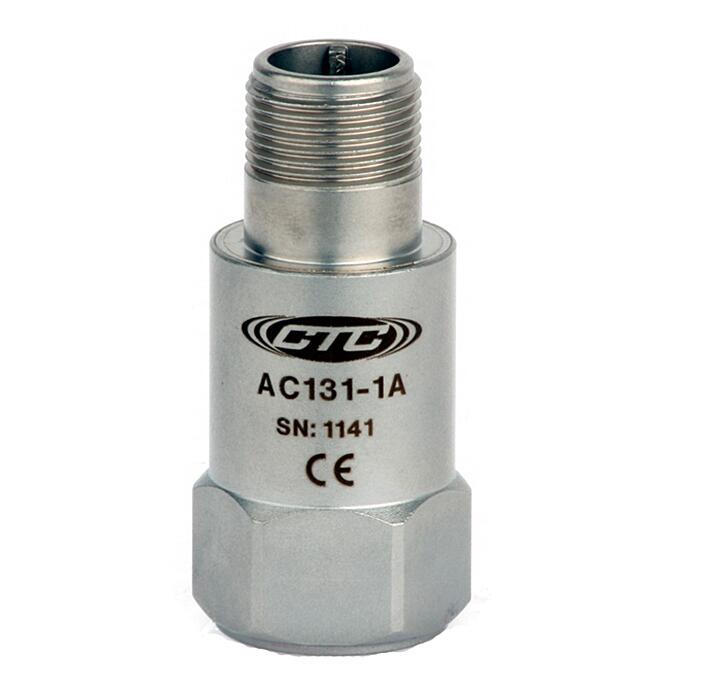

Series Name	AC131	AC220	AC224
Description	High g Accelerometer, Top Exit Connector / Cable 10 mV/g	High Frequency mini-MIL Accelerometer, Top Exit Cable, 10 mV/g	High Frequency mini-MIL Accelerometer, Side Exit Connector / Cable, 10 mV/g
Sensitivity	10 mV/g	10 mV/g	10 mV/g
Frequency Response (±3dB)	60-900,000 CPM	60-1,500,000 CPM	60-900,000 CPM
Dynamic Range	± 500 g, peak	± 500 g, peak	± 500 g, peak
Power Requirements Voltage Source	18-30 VDC	18-30 VDC	18-30 VDC
Temperature Range	-58 to 250°F (-50 to 121°C)	-58 to 250°F (-50 to 121°C)	-58 to 250°F (-50 to 121°C)
Case Material	316L Stainless Steel	316L Stainless Steel	316L Stainless Steel
Connector	2 Pin MIL-C-5015	2 Pin mini-MIL	2 Pin mini-MIL
Max Temp	250°F (121°C)	250°F (121°C)	250°F (121°C)
